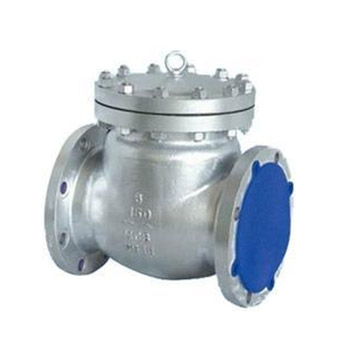

H44H高压美标止回阀

更新时间:H44H高压美标止回阀

已被浏览:

详细介绍

H44H美标高压止回阀主要零件材料

零件名称材料牌名
阀体WCBZGCr5MoZG1Cr18Ni9TiZG1Cr18Ni12Mo2Ti
阀盖WCBZGCr5MoZG1Cr18Ni9TiZG1Cr18Ni12Mo2Ti
阀瓣WCBZGCr5MoZG1Cr18Ni9TiZG1Cr18Ni12Mo2Ti
销轴2Crl32Crl31Cr18Ni9Ti1Cr18Ni12MO2Ti
垫片石墨缠绕垫片石墨缠绕垫片聚四氟乙稀缠绕垫片聚四氟乙稀缠绕垫片

 H44H美标高压止回阀型号性能规范

公称压力 PN(MPa)壳体材料试验压力(Mpa)
WCBZGCr5Mo(C5)ZG1Cr18Ni9TiZG1Cr18Ni12Mo2Ti强度试验液体密封气体密封
1.6H44H-16CH44Y-16IH44W-16PH44W-16R2.41.8
2.5H44H-25H44Y-25IH44W-25PH44W-25R3.82.8
4.0H44H-40H44Y-40IH44W-40PH44W-40R6.04.4
6.4H44H-64H44Y-64IH44W-64PH44W-64R9.67.1
10.0H44H-100H44Y-100IH44W-100PH44W-100R15.011.0
适用温度-29-425℃≤550℃-40-200℃-40-200℃超出温度范围,请订货时注明
适用介质水蒸气、油品等水蒸气、油品等硝酸等醋酸等

   H44H美标高压止回阀连接尺寸和外形尺寸

H44H-40402001451108576184-ф18--
5023016012510088204-ф18185169
65290180145120110228-ф18215175
80310195160135121228-ф18235185
100350230190160150248-ф23270220
125400270220188126288-ф25340248
150480300250218204308-ф25375270
2005503751202822603812-ф30450342
2506504453853453134212-ф34525401
300750510450408364464-ф23550423
H44H-645030017513510588268-ф23200177
65340200160130110288-ф23225197
80380210170140121308-ф25250212
100430250200168150328-ф30315248
125500295240202176368-ф34365296
1505503402802402043812-ф34410330
2006504053453002604412-ф41480385
2507754704003523134816-ф41565445
300900530460412364504-ф25600474
H44H-1005030019514511288288-ф25220210
65340220170138110328-ф25240227
80380230180148121348-ф30260235
100430265210172150388-ф34330274
1255003102502101504212-ф34385307
1505503502902502044612-ф34425347
2006504303603122605412-ф41500402
2507755004303823136012-ф41565432
